b-parasite

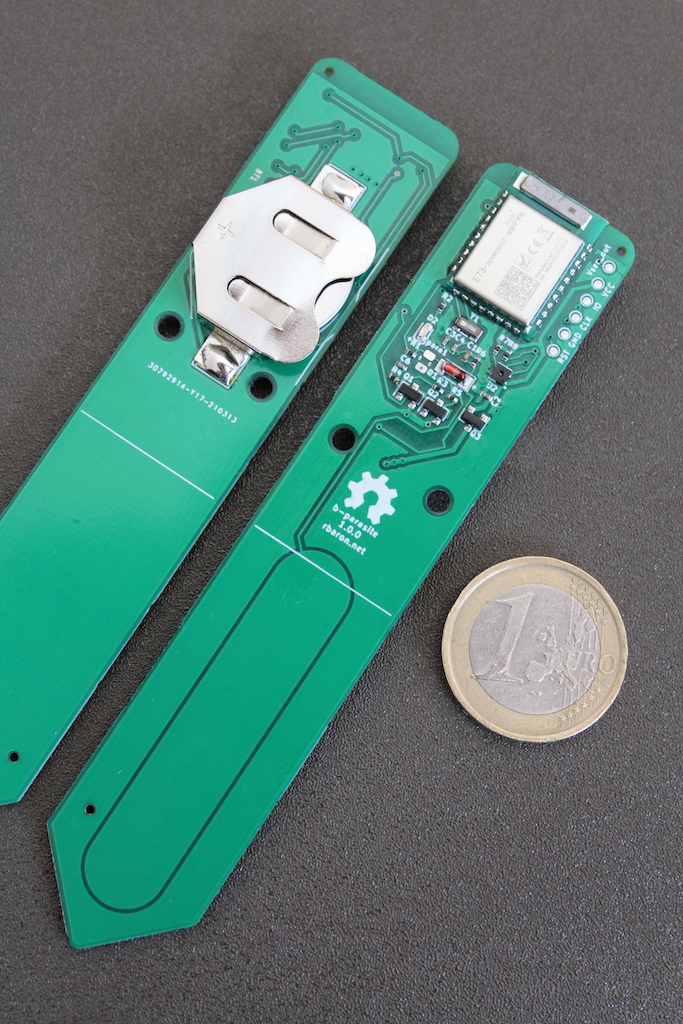

PCB front and back photo

b-parasite is an open source soil moisture and ambient temperature/humidity/light sensor.

Features

Capacitive Soil moisture sensor - see this blog post, this Twitter thread, and this post for nice resources on how they work
Air temperature and humidity sensor using a Sensirion's SHTC3
Light sensor using an ALS-PT19 phototransistor
Powered by a common CR2032 coin cell, potentially for over two years
Support for nRF52840 and nRF52833 modules
Open hardware and open source design

This repository also hosts a few different firmware samples for b-parasite.

Sample	Description	Extra Documentation
samples/ble	This is the most battle-tested and useful firmware. It periodically reads all sensors and broadcast them via Bluetooth Low Energy (BLE). It works with Home Assistant out of the box.	Docs
samples/zigbee	An experimental/educational/exploratory basic Zigbee sample built on nRF Connect + ZBOSS. It integrates with Home Assistant via ZHA or Zigbee2MQTT.	Docs
samples/blinky	The classic "Hello, world"	-
samples/soil_read_loop	Read the soil moisture sensor on a loop. Useful for experimenting and calibrating the sensor.	-

Information about how to order, assemble, build the samples, protect the sensor and flash the firmware is on the Wiki.

code/nrf-connect/ - Common library and samples, built with Nordic's nRF Connect SDK.
kicad/ - KiCad schematic, layout and fabrication files for the printed circuit board (PCB)
data/ - data for testing and sensor calibration
bridge/ - an ESPHome-based BLE-MQTT bridge
case/ - a 3D printable case

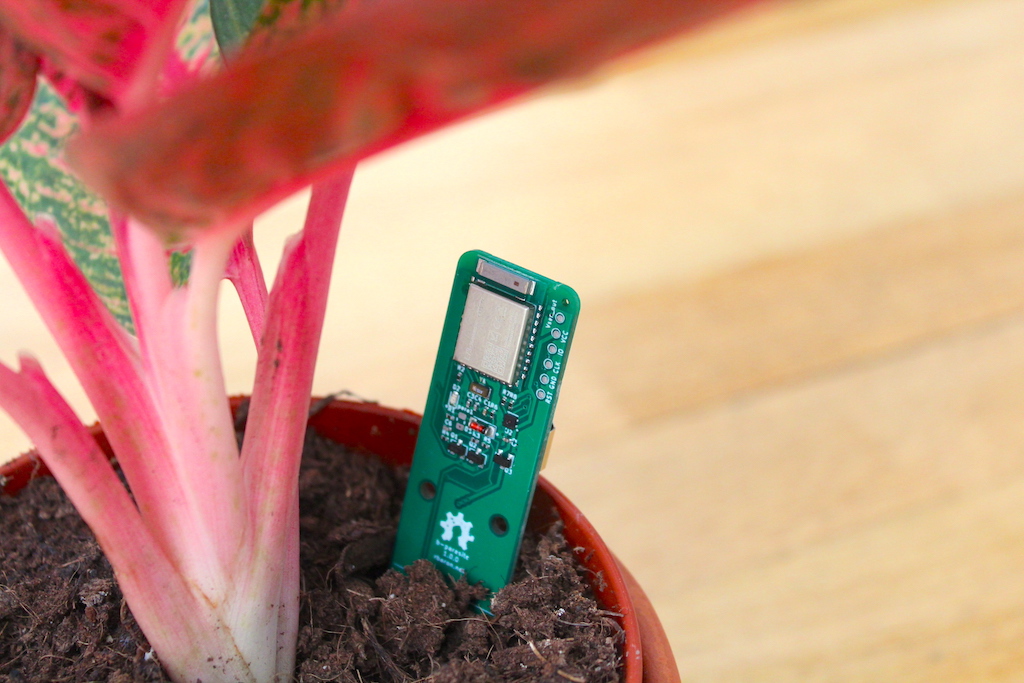

b-parasite stuck into a small plant vase

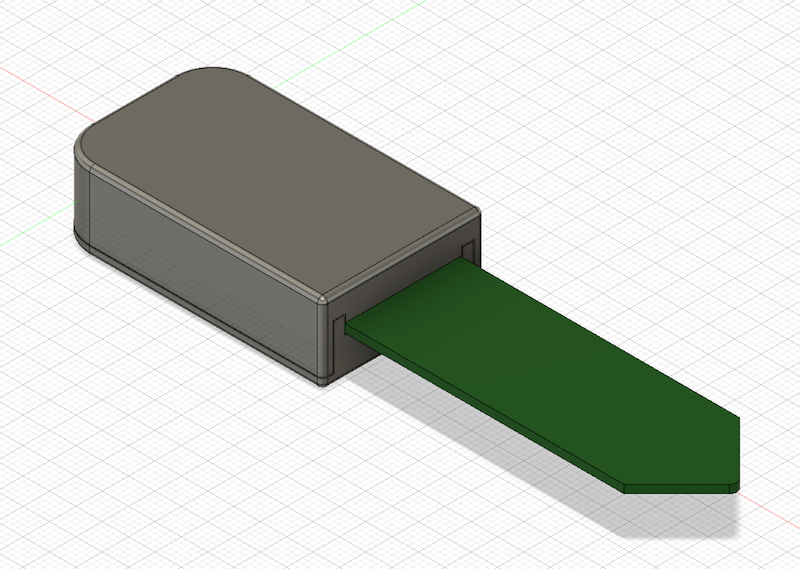

A 3D printable case model can be found in case/.

The hardware and associated design files are released under the Creative Commons CC BY-SA 4.0 license. The code is released under the MIT license.
